3 position probe holder
-
Adjustable water level
-
RUBY red wall to block light and prevent unwanted algae growth in skimmer section
-
Locking filter sock holder
-
Foam filter block
-
Protein skimmer section
-
Refugium section
WATER FLOW PATH
SECTION DETAILSRUBY20C
SECTION DETAILS

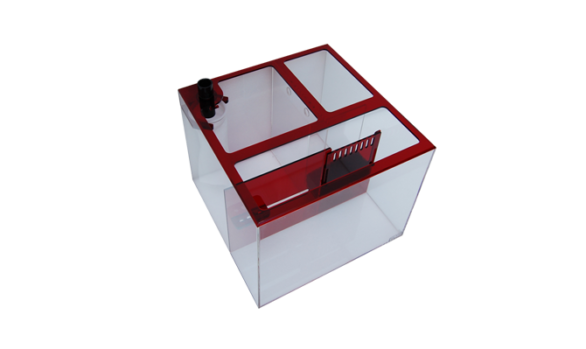

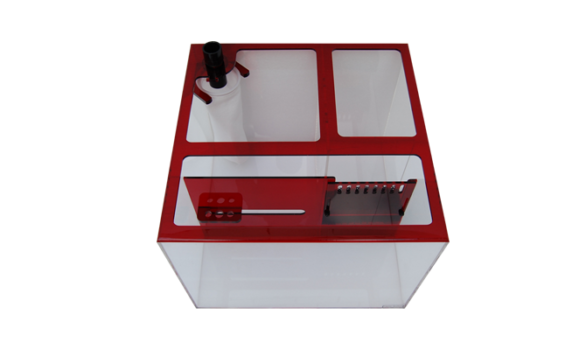

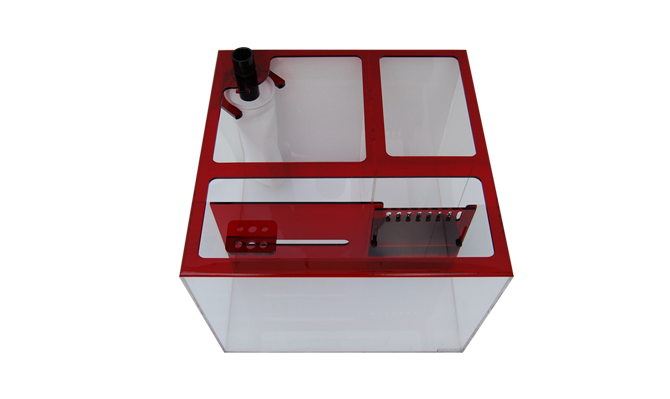

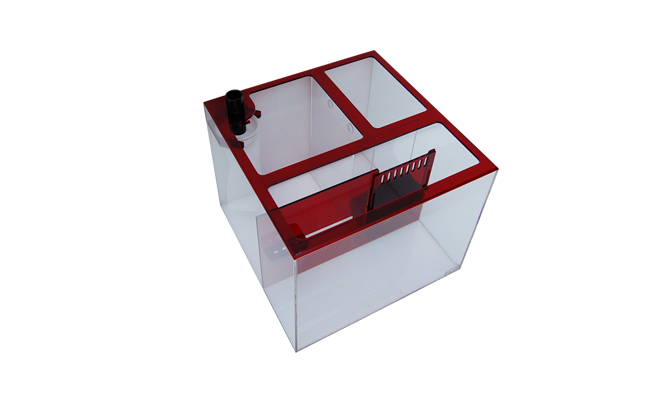

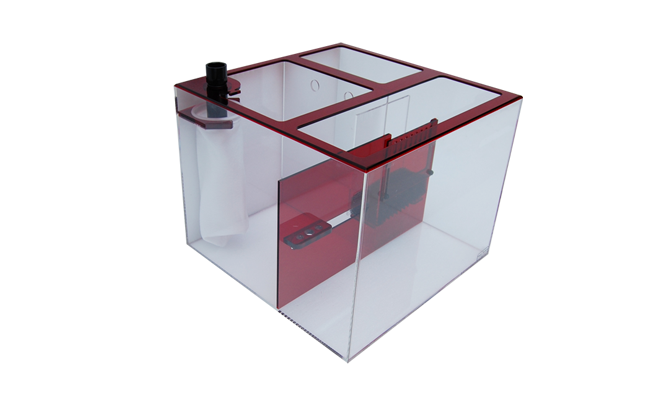

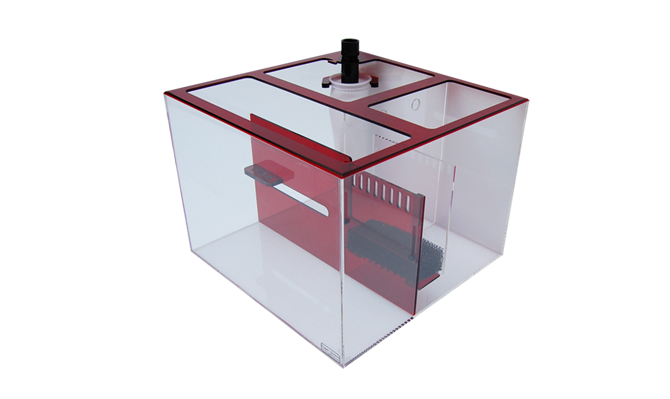

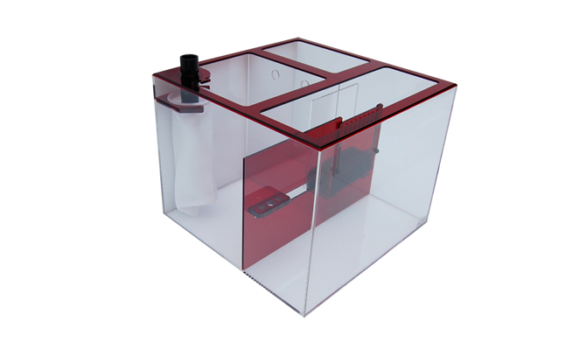

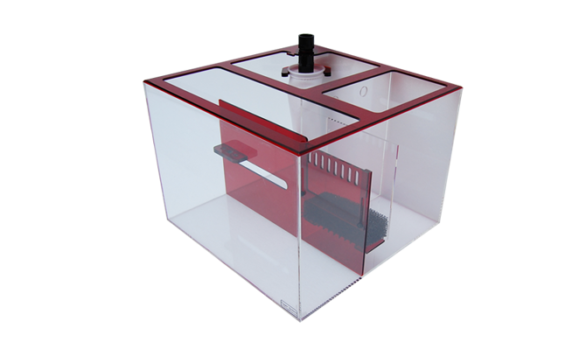

The RUBY20C has 3 main sections. Section 1 of the CUBE design is where the water from the main tank enters through the filter sock. This is the section where the protein skimmer typically sits. Water flows from this section through a slit in the baffle into Section 2.
Section 2 is typically used as the refugium section. Having the refugium facing the front is a nice feature allowing easy maintenance and visibility of the refugium. Water flows to the right and then towards the back over the baffle through the overflow teeth. The wall with the overflow teeth moves up and down to set the water level for Section 1 and Section 2. The water then goes through a foam block and under a baffle into Section 3.
Section 3 is the return section where the return pump will sit, pumping water back to the display tank.
Key Features
1. Locking filter sock holder
2. Drawstring tab for 7″ drawstring filter sock
3. Full top support brace to prevent bowing
4. Adjustable water level
5. Filter foam block
6. Three position probe holder
Adjustable Water Level
Water level in the sump is adjustable from 7″ to 9.5″ to accommodate water height requirements for different protein skimmers. Simply move the baffle to the desired height location and tighten the two bolts to hold in place.
Three Slot Probe Holder
The RUBY20C sumps come with a probe holder that can hold up to three probes. The two outside holes are 0.63” in diameter and the center hole is 0.8” in diameter to fit different sized probes.
Drawstring Tab
A tab is located on the top support brace in front of the 1” bulkhead fittings. The purpose of this tab is to provide a location for tying off a 7” diameter filter sock that has drawstrings. The 7″ socks allow for longer times before the filter sock gets clogged and needs to be cleaned or replaced.

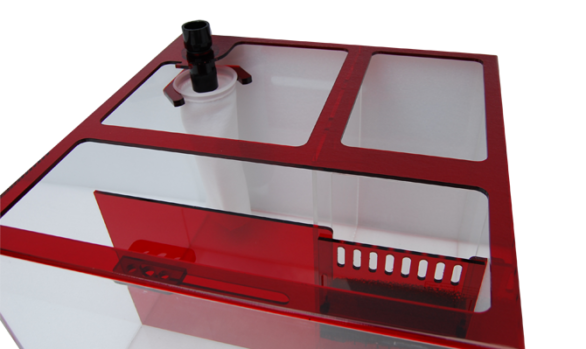

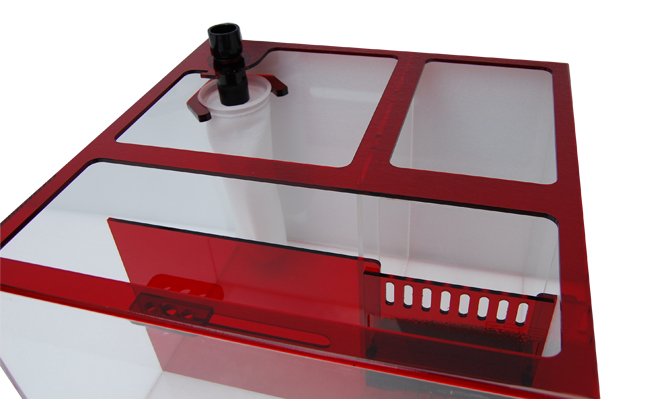

Locking Filter Sock Holder
Filter socks snap and lock into the filter sock holder to secure the sock from falling out when it becomes clogged. The 4” filter sock is 100 micron rating.
